🔩 HOT FORGED BRASS • 500,000 CYCLES CERAMIC DISC

Plumbing Brass Angle Valves OEM Factory & Shut-Off Valve Wholesale

Hot-forged lead-free brass angle stop valves, ceramic disc shut-off valves, and plumbing adapters engineered for leak-free sanitary installations.

View Engineering Specs Chat with Sales Engineer
🧪

CW617N Low-Lead Brass

Cu 59-62% strictly verified via in-house OES spectrometer, conforming to EN 817 and NSF/ANSI 61.

⚙️

Sedal Ceramic Cartridge

Spanish Sedal 35mm high-flow ceramic disc core rated for 500,000 drip-free cycles under commercial pressure.

🛡️

CASS 48H Grade 10 Plating

Copper-accelerated salt spray tested for 48 hours without micro-blistering, suitable for coastal marine climates.

🔬

100% Dual Pressure QA

0.6 MPa underwater pneumatic air test + 1.6 MPa hydrostatic water test before packing ensures zero leak rate.

B2B Engineering Datasheet

Technical Specification Matrix

Direct factory manufacturing standards and component specifications for wholesale distributors, private label importers, and plumbing project contractors.

Specification Parameter Factory Standard & Engineering Value
Forging Technology Heavy-Tonnage Hot Die Forging (Zero Porosity, Zero Micro-Shrinkage Voids)
Alloy Specification CW617N / HPb59-1 European Grade Extruded Brass Rod (Cu 58-60%, Pb <= 1.6%)
Cartridge Type Quarter-Turn (90°) High-Purity Alumina Ceramic Disc Core
Inlet Thread Standards G 1/2" Male, 1/2" NPT, or R 1/2" Male Pipe Thread with Knurled Seal Ribs
Outlet Thread Standards G 1/2", G 3/8", 3/8" Compression, or 9/16"-24 UNEF Thread
Hydrostatic Proof Test 100% Factory Tested at 1.6 MPa (16 Bar) Water Pressure
Pneumatic Air Seal Test 0.6 MPa (6 Bar) High Sensitivity Underwater Bubble Leakage Inspection
Working Temperature -10°C to 95°C (Suitable for Domestic Hot & Cold Water and Heating Systems)
Decorative Flange Thick SUS 304 Stainless Steel / Brass Wall Flange Rosette with Rubber Gasket
Bulk Packaging 1 pc/color box, 10 pcs/inner pack, 100 or 120 pcs/heavy export corrugated carton

MOQ Tiers & OEM Customization Lead Times

Flexible batch manufacturing from rapid sample approval to full container load dispatch.

Sample Batch
10 - 20 Pcs
3 - 5 Days
Samples dispatched for plumbing contractor pressure and fit testing
Distributor Order
500 Pcs
15 - 20 Days
Standard export packaging, custom laser mark on handle/body
Private Label Packaging
2,000 Pcs
25 Days
Custom blister pack or color box with retailer barcode and branding
Full Container Load (FCL)
20,000 - 40,000 Pcs
30 Days
Direct container palletization with maximum weight optimization
Product Catalog

Featured Plumbing Brass Angle Valves & Fittings SKUs

View Complete Catalog (37+ SKUs)

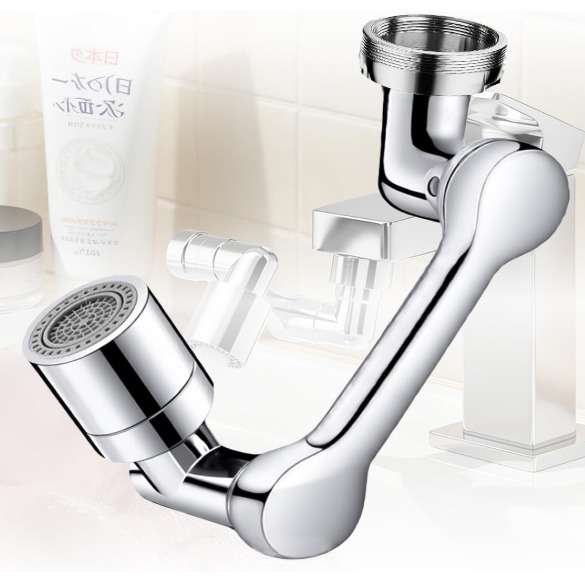

BM-FC-003 Brushed Chrome 360° Universal Faucet Aerator Adapter

360° Universal Faucet Aerator Adapter

  • Cartridge: Ceramic 90° Quarter-Turn Disc
  • Material: 304 Stainless Steel / Lead-Free Brass
  • Testing: 100% 1.6 MPa Water Tested
  • MOQ: 100 Pcs (Laser Logo Supported)

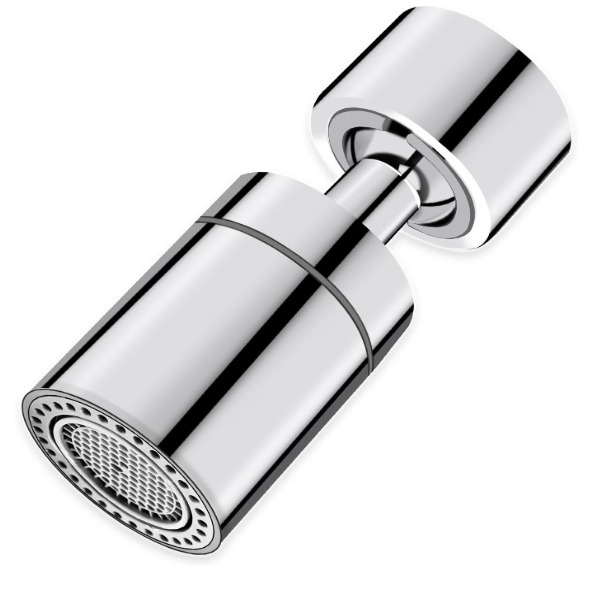

BM-FC-009 Brushed Chrome Dual-Mode Swivel Faucet Aerator Connector

Dual-Mode Swivel Faucet Aerator Connector

  • Cartridge: Ceramic 90° Quarter-Turn Disc
  • Material: 304 Stainless Steel / Lead-Free Brass
  • Testing: 100% 1.6 MPa Water Tested
  • MOQ: 100 Pcs (Laser Logo Supported)
Engineering Excellence

Why Global Importers Partner with BM Bathware

Located in Luncang Town, Nan'an City—the epicentre of China's plumbing and sanitary ware industry—BM Bathware controls every critical stage of production. From raw ingot spectrographic verification to automated 5-axis CNC machining, gravity die casting, and robotic high-precision buffing, our integrated campus prevents sub-tier quality failures.

  • Precision Wall Thickness: Heavy gravity cast brass bodies maintain a uniform >= 2.5mm wall to resist water hammer surges up to 3.5 MPa.
  • Food-Grade Certified Waterways: Odorless, non-toxic PEX-a inner tubes prevent any leaching of heavy metals or volatile organic compounds into drinking water.
  • Vacuum Magnetron PVD Coating: Superior scratch resistance (HV > 2000) compared to wet electroplating, with flawless color consistency across large batch orders.
Factory Campus Tour Audit & Test Reports

Fast B2B Engineering RFQ

B2B Buyer FAQ

Frequently Asked Questions

Common technical and procurement inquiries regarding Plumbing Brass Angle Valves & Fittings.

Hot die forging subjects heated solid brass rods to immense tonnage pressure, eliminating the microscopic air pockets, sand inclusions, and casting porosity inherent in cheap gravity or sand castings. This ensures our angle valves will never fracture under pipe stress or freeze-thaw cycles.

We precision-cut threads on CNC lathes for all global markets: ISO 228/1 parallel G 1/2" and G 3/8" for Europe, UK, and Australia; ANSI B1.20.1 NPT and 3/8" compression threads for North America; and BS 21 R/Rp threads for Commonwealth regions.

Our ceramic discs are manufactured from 96% purity sintered alumina ceramic ground to 0.05-micron optical flatness. They are certified for over 500,000 smooth 90-degree shut-off cycles without dripping, far outlasting traditional rubber-seated compression valves.
